Slade 3300 Series Packings
All of Slade Inc. packings are a result of an in-house know-how and years of development. This technology is protected with US and EU patents. One Solution for ALL your sealing needs!

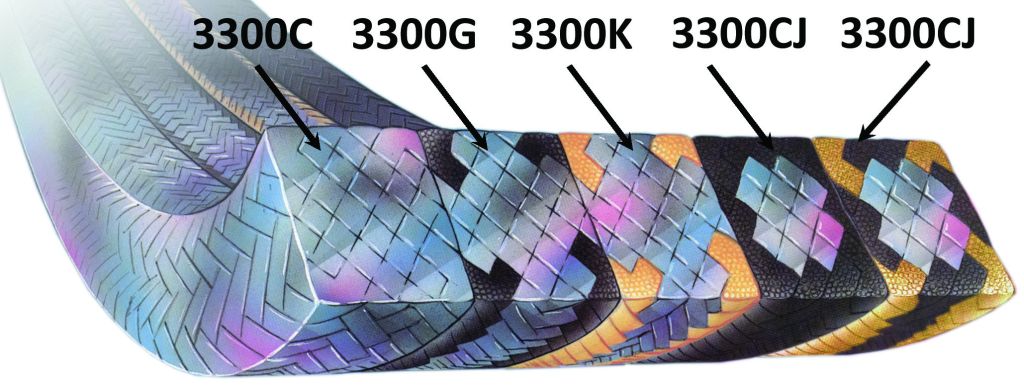

![Slade packing](/en/images/stories/packing%20photo%20res.jpg) Slade 3300G is the best packing for both pumps and valves eliminating the risk of installing the wrong packing and reducing inventories. It can be operated flush-free and leak-free in most application. Excellent for ALL power plant applications. ![slade packings list](/en/images/stories/sladepackings%20list.jpg)
3300C – Slade’s Cost Effective Pump and Valve Packing |
---|
Reinforcement: | Each yarn of graphite foil is reinforced with high strength structural carbon fiber | Temp: | Non-oxidizers: -400°F/-240°C to 5400°F/3000°C Mild Oxidizers to 1800°F/1000°C | Pressures: | Valves to 1000 PSI/70 BAR (for higher pressures, consult factory) | pH Range: | 1-14 | 3300W: | Inconel wire reinforced for higher pressures: 5000 PSI/350 BAR | 3300LC: | Low chloride, high purity for nuclear service | 3300LS: | Low sulfur, high purity for nuclear service |
Download 3300C datasheet 3300G – Slade’s Best All Purpose Pump and Valve Packing |
---|
Reinforcement: | Corners and yarns of graphite foil reinforced with high strength structural carbon fiber | Temp: | Non-oxidizers: -400°F/-240°C to 5400°F/3000°C Mild Oxidizers to 1800°F/1000°C | Pressures: | Valves to 5000 PSI/350 BAR without end-rings | Pumps: | Flush-free in many services to 4800 FPM (1400 m/min) | pH Range: | 1-14 | Applications: | Chemicals, steam, hydrocarbons, etc. | Advantages: | - One packing inventory for all pumps and valves - Works well on worn sleeves - Difficult to overtighten - No added lubricants to squeeze out or burn off - Eliminates flush-water in most applications - Not necessary to replace entire set, just add ring - Won’t glaze or harden - Eliminates most leaks - Amperage reduction of 15% is typical - No special end-rings required - Outlasts typical packings by factor of 6 - 4800 fpm/24 ms (without flush water) - pH 1-14 - Operates virtually leak-free in most applications - Low chloride/sulfur available for nuclear service
| Installation: | - Check clearances and dimensions
- Best to use no more than 5 rings in stuffing box (us Sladespacer bushings to reduce rings
- Cut rings on the bias (45° angle), stagger joints
- Compress each ring 25% (especially the first ring)
- Loosen gland to allow it to relax
- Snug the gland bolts and start the pump
| 3300GLC: | Low chloride for nuclear service | 3300GLS: | Low sulfur for nuclear service |
Download 3300G datasheet
3300K – Slade’s Best Triplex Pump, Reciprocating Packing |
---|
Reinforcement: | Same as 3300C, but with added Kevlar fiber corners | Temp: | Maximum temperature of 500°F/260°C | Applications: | Reciprocating/plunger, wastewater, steam and ammonia pumps | Pressures: | 5000 PSI/350 BAR | pH Range | 2-12 |
Download 3300K datasheet 3300CJ – Slade’s Anti-Extrusion Carbon Fiber Packing |
---|
Description: | Carbon jacketed 3300C | Pressures: | Valves to 1000 PSI/70 BAR (for higher pressures, consult factory) | Application: | Used as anti-extrusion end-ring |
Download 3300CJ datasheet 3300CJK – Slade’s Anti-Extrusion Carbon Fiber Packing |
---|
Description: | 3300C with Kevlar corners | Temp: | 500°F/260°C | Application: | Used as end-ring to provide anti-extrusion (especially with large throat clearances) and to provide barrier to particulate contamination |
Download 3300CJK datasheet
|
